跟踪未知数量的对象

虽然 SVI 可以用于学习混合模型的组件和分配，但 pyro.contrib.tracking 提供了更高效的推断算法来估计分配。本 Notebook 演示了如何在 SVI 中使用 MarginalAssignmentPersistent。

import math
import os
import torch
from torch.distributions import constraints
from matplotlib import pyplot

import pyro
import pyro.distributions as dist
import pyro.poutine as poutine
from pyro.contrib.tracking.assignment import MarginalAssignmentPersistent
from pyro.distributions.util import gather
from pyro.infer import SVI, TraceEnum_ELBO
from pyro.optim import Adam

%matplotlib inline
assert pyro.__version__.startswith('1.9.1')
smoke_test = ('CI' in os.environ)

让我们考虑一个具有确定性动力学的模型，例如已知周期但未知相位和幅度的正弦波。

def get_dynamics(num_frames):
    time = torch.arange(float(num_frames)) / 4
    return torch.stack([time.cos(), time.sin()], -1)

定义一个完整的生成模型很棘手，所以我们将其数据生成过程 generate_data() 与用于推断的因子图 model() 分开。

def generate_data(args):
    # Object model.
    num_objects = int(round(args.expected_num_objects))  # Deterministic.
    states = dist.Normal(0., 1.).sample((num_objects, 2))

    # Detection model.
    emitted = dist.Bernoulli(args.emission_prob).sample((args.num_frames, num_objects))
    num_spurious = dist.Poisson(args.expected_num_spurious).sample((args.num_frames,))
    max_num_detections = int((num_spurious + emitted.sum(-1)).max())
    observations = torch.zeros(args.num_frames, max_num_detections, 1+1) # position+confidence
    positions = get_dynamics(args.num_frames).mm(states.t())
    noisy_positions = dist.Normal(positions, args.emission_noise_scale).sample()
    for t in range(args.num_frames):
        j = 0
        for i, e in enumerate(emitted[t]):
            if e:
                observations[t, j, 0] = noisy_positions[t, i]
                observations[t, j, 1] = 1
                j += 1
        n = int(num_spurious[t])
        if n:
            observations[t, j:j+n, 0] = dist.Normal(0., 1.).sample((n,))
            observations[t, j:j+n, 1] = 1

    return states, positions, observations

def model(args, observations):
    with pyro.plate("objects", args.max_num_objects):
        exists = pyro.sample("exists",
                             dist.Bernoulli(args.expected_num_objects / args.max_num_objects))
        with poutine.mask(mask=exists.bool()):
            states = pyro.sample("states", dist.Normal(0., 1.).expand([2]).to_event(1))
            positions = get_dynamics(args.num_frames).mm(states.t())
    with pyro.plate("detections", observations.shape[1]):
        with pyro.plate("time", args.num_frames):
            # The combinatorial part of the log prob is approximated to allow independence.
            is_observed = (observations[..., -1] > 0)
            with poutine.mask(mask=is_observed):
                assign = pyro.sample("assign",
                                     dist.Categorical(torch.ones(args.max_num_objects + 1)))
            is_spurious = (assign == args.max_num_objects)
            is_real = is_observed & ~is_spurious
            num_observed = is_observed.float().sum(-1, True)
            pyro.sample("is_real",
                        dist.Bernoulli(args.expected_num_objects / num_observed),
                        obs=is_real.float())
            pyro.sample("is_spurious",
                        dist.Bernoulli(args.expected_num_spurious / num_observed),
                        obs=is_spurious.float())

            # The remaining continuous part is exact.
            observed_positions = observations[..., 0]
            with poutine.mask(mask=is_real):
                bogus_position = positions.new_zeros(args.num_frames, 1)
                augmented_positions = torch.cat([positions, bogus_position], -1)
                predicted_positions = gather(augmented_positions, assign, -1)
                pyro.sample("real_observations",
                            dist.Normal(predicted_positions, args.emission_noise_scale),
                            obs=observed_positions)
            with poutine.mask(mask=is_spurious):
                pyro.sample("spurious_observations", dist.Normal(0., 1.),
                            obs=observed_positions)

本指南使用了一个智能的分配求解器，但状态估计器较朴素。更智能的实现会在状态估计中也使用消息传递，例如 卡尔曼滤波-平滑器。

def guide(args, observations):
    # Initialize states randomly from the prior.
    states_loc = pyro.param("states_loc", lambda: torch.randn(args.max_num_objects, 2))
    states_scale = pyro.param("states_scale",
                              lambda: torch.ones(states_loc.shape) * args.emission_noise_scale,
                              constraint=constraints.positive)
    positions = get_dynamics(args.num_frames).mm(states_loc.t())

    # Solve soft assignment problem.
    real_dist = dist.Normal(positions.unsqueeze(-2), args.emission_noise_scale)
    spurious_dist = dist.Normal(0., 1.)
    is_observed = (observations[..., -1] > 0)
    observed_positions = observations[..., 0].unsqueeze(-1)
    assign_logits = (real_dist.log_prob(observed_positions) -
                     spurious_dist.log_prob(observed_positions) +
                     math.log(args.expected_num_objects * args.emission_prob /
                              args.expected_num_spurious))
    assign_logits[~is_observed] = -float('inf')
    exists_logits = torch.empty(args.max_num_objects).fill_(
        math.log(args.max_num_objects / args.expected_num_objects))
    assignment = MarginalAssignmentPersistent(exists_logits, assign_logits)

    with pyro.plate("objects", args.max_num_objects):
        exists = pyro.sample("exists", assignment.exists_dist, infer={"enumerate": "parallel"})
        with poutine.mask(mask=exists.bool()):
            pyro.sample("states", dist.Normal(states_loc, states_scale).to_event(1))
    with pyro.plate("detections", observations.shape[1]):
        with poutine.mask(mask=is_observed):
            with pyro.plate("time", args.num_frames):
                assign = pyro.sample("assign", assignment.assign_dist, infer={"enumerate": "parallel"})

    return assignment

我们将定义一个全局配置对象，以便轻松将代码移植到 argparse。

args = type('Args', (object,), {})  # A fake ArgumentParser.parse_args() result.

args.num_frames = 5
args.max_num_objects = 3
args.expected_num_objects = 2.
args.expected_num_spurious = 1.
args.emission_prob = 0.8
args.emission_noise_scale = 0.1

assert args.max_num_objects >= args.expected_num_objects

生成数据

pyro.set_rng_seed(0)
true_states, true_positions, observations = generate_data(args)
true_num_objects = len(true_states)
max_num_detections = observations.shape[1]
assert true_states.shape == (true_num_objects, 2)
assert true_positions.shape == (args.num_frames, true_num_objects)
assert observations.shape == (args.num_frames, max_num_detections, 1+1)
print("generated {:d} detections from {:d} objects".format(
    (observations[..., -1] > 0).long().sum(), true_num_objects))

generated 16 detections from 2 objects

训练

def plot_solution(message=''):
    assignment = guide(args, observations)
    states_loc = pyro.param("states_loc")
    positions = get_dynamics(args.num_frames).mm(states_loc.t())
    pyplot.figure(figsize=(12,6)).patch.set_color('white')
    pyplot.plot(true_positions.numpy(), 'k--')
    is_observed = (observations[..., -1] > 0)
    pos = observations[..., 0]
    time = torch.arange(float(args.num_frames)).unsqueeze(-1).expand_as(pos)
    pyplot.scatter(time[is_observed].view(-1).numpy(),
                   pos[is_observed].view(-1).numpy(), color='k', marker='+',
                   label='observation')
    for i in range(args.max_num_objects):
        p_exist = assignment.exists_dist.probs[i].item()
        position = positions[:, i].detach().numpy()
        pyplot.plot(position, alpha=p_exist, color='C0')
    pyplot.title('Truth, observations, and predicted tracks ' + message)
    pyplot.plot([], 'k--', label='truth')
    pyplot.plot([], color='C0', label='prediction')
    pyplot.legend(loc='best')
    pyplot.xlabel('time step')
    pyplot.ylabel('position')
    pyplot.tight_layout()

pyro.set_rng_seed(1)
pyro.clear_param_store()

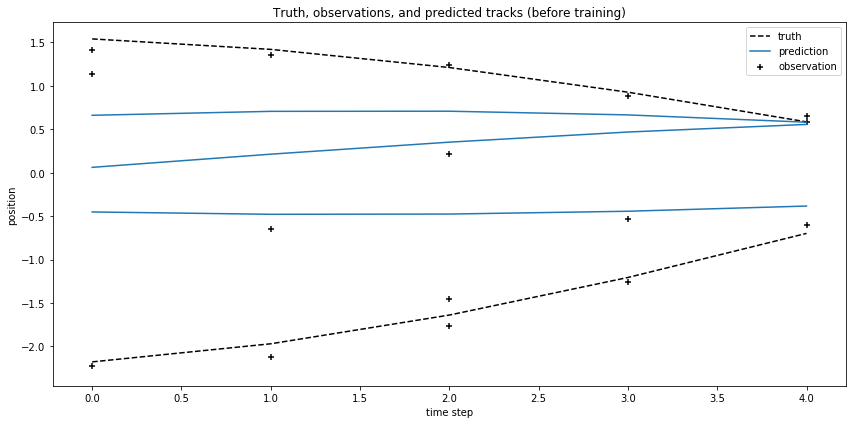

plot_solution('(before training)')

infer = SVI(model, guide, Adam({"lr": 0.01}), TraceEnum_ELBO(max_plate_nesting=2))
losses = []
for epoch in range(101 if not smoke_test else 2):
    loss = infer.step(args, observations)
    if epoch % 10 == 0:
        print("epoch {: >4d} loss = {}".format(epoch, loss))
    losses.append(loss)

epoch    0 loss = 89.270072937
epoch   10 loss = 85.940826416
epoch   20 loss = 86.1014556885
epoch   30 loss = 83.8865127563
epoch   40 loss = 85.354347229
epoch   50 loss = 82.01512146
epoch   60 loss = 78.1765365601
epoch   70 loss = 78.0290603638
epoch   80 loss = 74.915725708
epoch   90 loss = 74.3280792236
epoch  100 loss = 74.1109313965

pyplot.plot(losses);

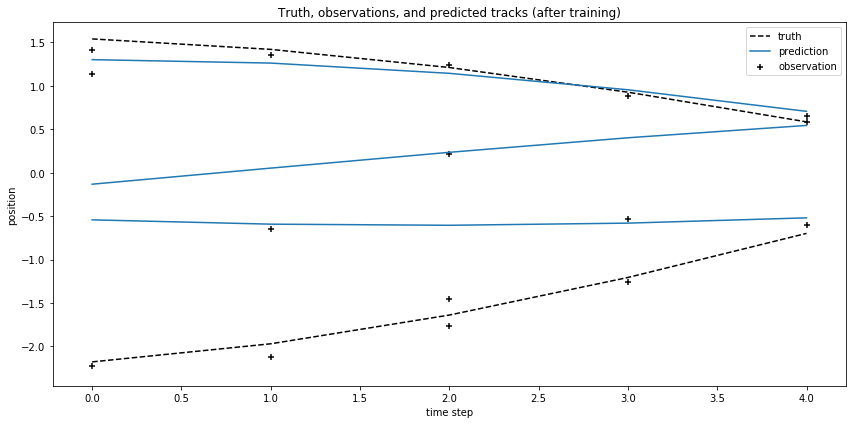

plot_solution('(after training)')
